Description

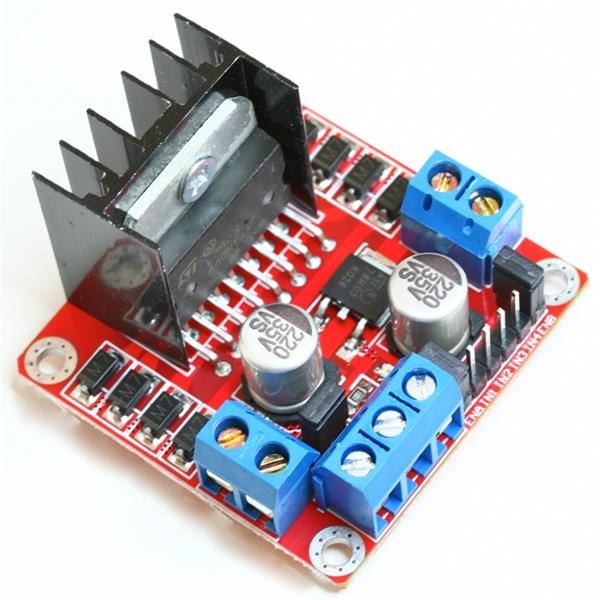

The L298 Stepper Controller makes it easy to drive either two DC motors or a bipolar stepper motor. This is a very high quality board and is very compact for designs where space really matter
Note: This module has a built-in 5v power supply for external use. Drive voltage is 7v-35v. DO NOT input voltage to +5v supply interface – this is OUTPUT only.
Mikroelectron.com offer a high quality dual h bridge DC & stepper motor controller boardBuy online just @JD14.00.Dual H Bridge DC & Stepper Motor ControllerBuy Dual H Bridge DC & Stepper Motor Controller online
Features:
- Double H bridge drive
- Chip L298N (ST NEW)
- Logical voltage 5V
- Drive voltage 5V-35V
- Logic current 0mA-36mA
- Drive current 2A(MAX single bridge)
- Storage temperature -20 to +135
- Max power 25W
- Weight 30g
- Small size 43*43*27mm ( approx 1.75″ x 1.75″ x 1″)
- Compatible with L297/L298 driver
Documents:
